KTPM-AW350 Series High Speed Food Paper Bag Making Machine

Description:

This Food Paper Bag Making Machine uses roll type paper to make sharp bottom paper bags with a plastic window. it’s suitable for Kraft paper, ribbed Kraft paper, grease-proof paper, coated paper, medico paper, etc. this machine can make a different kind of paper bag, snack paper bag, food paper bag, bread paper bag, dry fruit paper bag, and eco-friendly paper bag and so on.

Performance and Characteristics:

  • PLC Touch screen use LENZE brand (Germany)
  • PC Motion controller use LENZE brand (Germany)
  • Servo motor use LENZE brand (Germany)
  • Inverter use DELTA brand (Taiwan)
  • Photosensor use the SICK brand (Germany)
  • Unwind EPC use SELECTRA brand (Italy)
  • Unwind with hydraulic auto-loading
  • Electrical controller box with air conditioner
  • Machine with CE certification
  • Machine with ROHS certification.
  • Optional inline flexo printing machine (2 colors/4 colors)

Food Paper Bag Making Machine

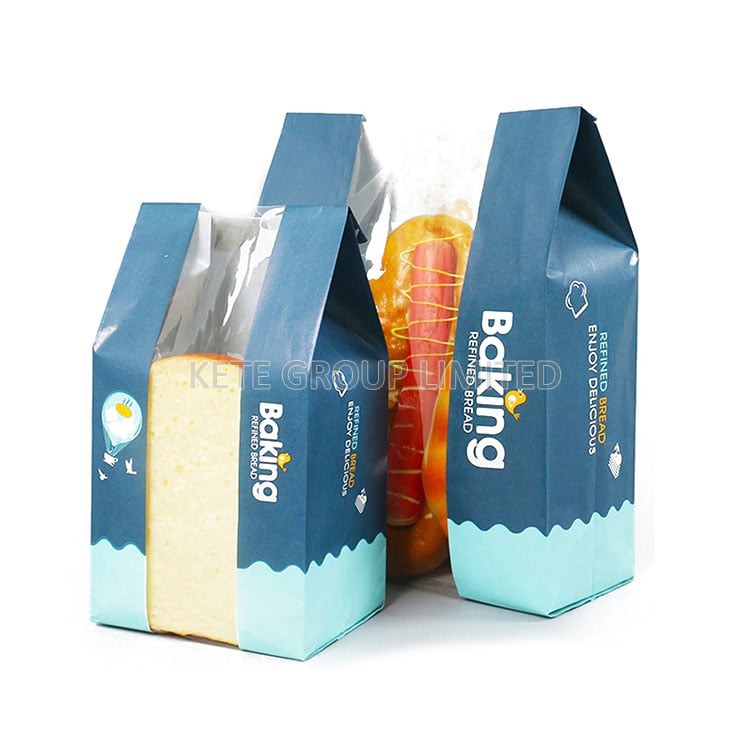

Paper Bag Samples

paper bag with plastic window
paper bag with plastic window
paper bag with plastic window
paper bag with plastic window
paper bag with plastic window
paper bag with plastic window
paper bag with plastic window
paper bag with plastic window

Food Paper Bag Making Machine Video

Food Paper Bag Machine Specification

Model

KTPM-A350

KTPM-AW350

Length of cutting bag

165-715mm

165-720mm

Bag Making Length

155-710mm

155-710mm

Bag Making Width

70-350mm

70-350mm

Bag Making Speed

50-650pcs/min

Bag Side Gusset

20-120mm

20-120mm

Bag Mouth Height

15/20mm

15/20mm

Paper Thickness

35-80mm

35-80mm

Jumbo Roller Width

100-980mm

100-980mm

Jumbo Roller Diameter

200-1000mm

200-1000mm

Plastic Film Thickness

/

0.012-0.037mm

Plastic Film Width

/

50-240mm

Machine Power

22kw

27kw

Machine Weight

6000kg

6500kg

Power Support

3 Phase  220/380/440V  50/60HZ

Machine Size

7300 x 3000 x 2200mm

7300 x 3100 x 2200mm



Machine Functions

unwind

unwind

our machine unwind part uses autoloading design,  with air cylinder control it, use air shaft loading jumbo roll.  can support max 1000mm diameter jumbo roll.

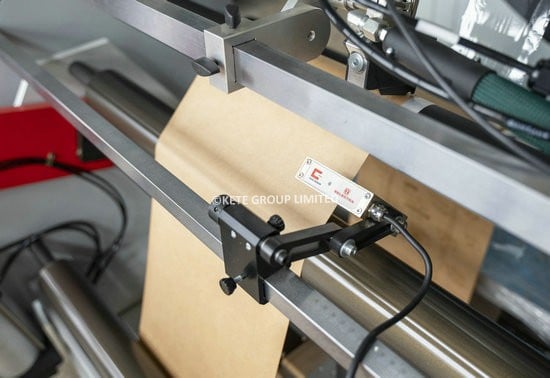

EPC device

EPC device

our machine use high precision edge control system, it is can help control the paper going is straight way and stable.

performation

perforation

our machine use per cutting perforation design,  it is can per cutting paper before forming, after forming bag use need use servo motor control system open it, get beautiful cutting line.

paper bag making machine hot melt gule

glue device

our machine uses a high precision electrical valve to control the side sealing hot melt glue feeding. this is can effectively reduce the problem of foaming at the glue side

paper bag making machine hot melt heater

glue heater

our machine uses a glue heater to feeding the hot melt glue, working with high precision electrical valve to control the side sealing glue feeding. this is can effectively sealing the plastic and paper

photo sensor

photo sensor

our machine uses sick high precision photosensor, it is can support printed paper bag making.

forming mold

forming unit

our machine uses the forming mold to help to form paper bags, it is can high effective control the bag size precision

cutting unit

cutting unit

our machine uses a servo control cutting system, it is working together with the perforation system to make the bag cutting line in a good result.

rewind

rewind

our machine uses rewind unit support auto counting, customer can set patch quantity as you need.

control system

control system

our machine uses Germany servo control system, let machine can work in high speed and stability.

2 color inline printing

2 color inline printing

our paper bag making machine uses support optional inline flexo printing, we have 2 colors and 4 colors for customer choice,

4 color inline printing

4 color inline printing

our machine uses support optional inline flexo printing, we have 2 colors and 4 colors for customer choice,

Machine Certification

PAPER BAG MAKING MACHIEN CE CERTIFICATION
PAPER BAG MAKING MACHIEN ROHS CERTIFICATION
