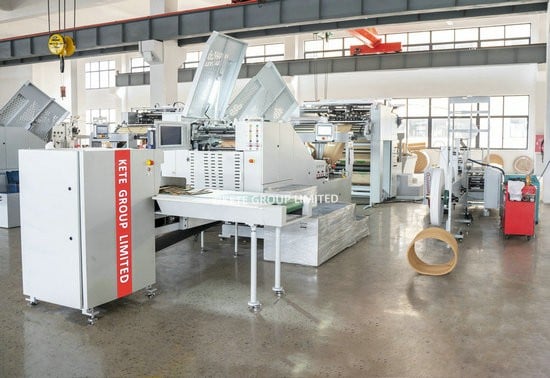

KTPM-BHT Series Twisted Handle Fully Automatic Paper Carry Bag Making Machine

This Fully Automatic Paper Carry Bag Making Machine uses roll-type paper to make various sized square bottom paper bags with twisted handles.

Features

  • PLC Touch Screen Use SCHEIDER Brand (France)
  • PC Motion Controller use LENZE Brand (Germany)
  • Servo Motor use LENZE Brand (Germany)
  • Inverter Use DELTA Brand (Taiwan)
  • Photo Sensor Use SICK Brand (Germany)
  • EPC Use SELECTRA Brand (Italy)
  • Electrical Box with AC Condition
  • Optional Inline Flexo Printing Machine (2 colors/4 colors)
CE Certification
RoHS Certification

Products Our Machine Can Make

Paper Carry Bag Making Machine Samples 34
Paper Bags
Paper Carry Bag Making Machine Samples 47
Paper Bags
Paper Carry Bag Making Machine Samples 8
Paper Bags
Paper Carry Bag Making Machine Samples 7
Paper Bags
Paper Carry Bag Making Machine Samples 28
Paper Bags
Paper Carry Bag Making Machine Samples 32
Paper Bags
Paper Carry Bag Making Machine Samples 31
Paper Bags
Paper Carry Bag Making Machine Samples 44
Paper Bags
Machine Specifications
Model KTPM-BHT330 KTPM-BHT450 KTPM-BHT450A KTPM-BHT450B
Tube Length With Handle 270-430mm 270-430mm 300-530mm 380-660mm
Without Handle 270-530mm 270-530mm 300-630mm 380-760mm
Bag Width With Handle 200-330mm 240-450mm 220-450mm 240-450mm
Without Handle 120-330mm 200-450mm 220-450mm 220-450mm
Bottom Width With Handle 90-180mm 80-180mm 80-220mm 80-230mm
Without Handle 90-180mm 70-180mm 80-220mm 80-230mm
Paper Thickness With Handle 80-150gsm 70-150gsm 80-150gsm 80-150gsm
Without Handle 70-150gsm 50-150gsm 70-150gsm 80-150gsm
Paper Roll Width With Handle 590-1050mm 690-1290mm 630-1370mm 670-1370mm
Without Handle 380-1050mm 610-1290mm 630-1370mm 630-1370mm
Paper Core Diameter 76mm 76mm 76mm 76mm
Max Paper Jumbo Roll Diameter 1300mm 1200mm 1200mm 1200mm
Handle Patch Paper Sheet Width 152mm 190mm 190mm 190mm
Handle Patch Paper Sheet Height 50mm

40mm (Customized)

50mm

40mm (Customized)

50mm

40mm (Customized)

50mm

40mm (Customized)

Twisted Rope Distance 75mm 95mm 95mm 95mm
Twisted Rope Diameter 3-5mm 3-5mm 3-5mm 3-5mm
Handle Patch Paper Roll Width 100mm

80mm (Customized)

100mm

80mm (Customized)

100mm

80mm (Customized)

100mm

80mm (Customized)

Handle Patch Paper Roll Diameter 1200mm 1200mm 1200mm 1200mm
Handle Patch Paper Thickness 80-135gsm 80-135gsm 80-135gsm 80-135gsm
Paper Feeding Speed ≤100m/min ≤90m/min ≤90m/min ≤90m/min
Paper Bag Making Speed (With Handle) 30-150 pcs/min 30-150 pcs/min 30-120 pcs/min 30-90 pcs/min
Paper Bag Making Speed (Without Handle) 30-180 pcs/min 30-180 pcs/min 30-150 pcs/min 30-120 pcs/min
Cutting Type Sawtooth cutting Sawtooth cutting Sawtooth cutting Sawtooth cutting
Machine Power 41.5kw 41.5kw 42kw 43.5kw
Machine Weight 15000kg 15500kg 16000kg 16500kg
Machine Size (LWH) 14000*6000*2400mm 14000*6000*2400mm 16000*6000*3200mm 16000*6500*3200mm
Power Support 3 Phase 220/380/440V 50/60HZ

Main Features

Paper Carry Bag Making Machine Finished Bag

Finished Bag

Paper Bag With Twisted Handle

Paper Carry Bag Making Machine Unwind

Unwind Unit

With Hydraulic Auto-Loading

With Auto Tension Control

Max Diameter: 1300mm

Auto Tension Control

Power Brake: 10kg

Paper Carry Bag Making Machine EPC

EPC Unit

Control Paper Feeding Way Design

Control by Servo Motor

Use Ultrasonic Sensor

Paper Carry Bag Making Machine Handle Unwind

Handle Unwind Unit

With EPC Control



Paper Carry Bag Making Machine Handle Making

Twisted Handle Making Unit

Hot Melt Glue

Paper Carry Bag Making Machine Glue Coating

Handle Glue Coating and Per-Cutting Unit

Control By Servo Motor

Paper Carry Bag Making Machine Handle Feeding

Twisted Handle Feeding Unit

Control By Servo Motor

Paper Carry Bag Making Machine Handle Sealing

Twisted Handle Sealing Unit

Control By Servo Motor

Paper Carry Bag Making Machine Photo Sensor

Photo Sensor

Printing Mark Checking

square bottom paper bag making machine gluing

Side Gluing Unit

Water-based Glue

Paper Carry Bag Making Machine Tube Forming

Tube Forming Unit

Use Fixed Forming Mold

Paper Carry Bag Making Machine Cutting

Tube Cutting Unit

Servo Motor Control

Paper Carry Bag Making Machine Bottom Forming

Bottom Forming Unit

Servo Motor Control

Paper Carry Bag Making Machine Rewind

Rewind Unwind

Auto Counting

Patch Quantity Set

Paper Carry Bag Making Machine Touch Screen

PLC Touch Screen

Support Different Language

Online Computer Connect

Brown Paper Bag Making Machine Control Box

Control Box

LENZE Brand Servo System

Paper Carry Bag Making Machine Inline 2 Color Printing

Inline 2 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min

Paper Carry Bag Making Machine Inline 4 Color Printing

Inline 4 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min
